Plastic PE Board Machine Line

PE PP Sheet Board Production Line


1, Sheet Application


1)      Chemical industry

2)      Packing

3)      Medicine

4)      Food

5)      Stationery and etc.


2, Sheet width range


500-2000mm


3, Sheet thickness range


0.25-25mm


4, Production line configuration


1)      Electricity control cabinet

2)      Single screw extruder

3)      Mould

4)      Mesh changer

5)  Lamination unit

6)      Cooling bracket

7)      Side-trimming unit

8)      Hual-off unit

9)      Lamination unit

10)   Cutter

11)   Conveyor


5, Auxiliaty machine


Auxiliary machine are used for recycling , the pvc sheet which are from side-trimming
can be used again .


1)      Crusher

Application : crushing the PVC sheet into small pieces


2)      Mixer

Application : mixing all materials even .


3)      Air compressor

Application : providing air .


6, Production period


50 working days after prepayment


7, Payment terms


T/T ( pre-payment 30% , balance 70%)


8, Warranty period


1 year after machine's delivery .


9,After-sales services


1) Final commissioning and training at buyer's factory.

2) The seller will send 1 or 2 engineers to make the final commissioning and training. All the charges (round air ticket charge, food, lodging and other local charges) have to be borne by the buyer.

3) US $ 100 for each engineer per day out of China should be paid by buyer

4) Both parties will negotiated the time for the final inspection and training according to the conditions between both sides.

Investment casting technical flow process

The silica sol casting process also called precision investment casting process. It is a less cutting or no cutting casting process. It is an excellent technique in foundry industry. Its application is very extensive. It not only applicable to various types, various kinds of alloy and casting, and produce the casting dimension accuracy and surface quality is higher than other casting method, Even other casting method can not do the complex, high temperature resistant, not easy machining castings, all can be used for investment precision casting process.

The investment casting process, it is a process that use fusible materials make soluble model, and coated with several layers of tailor-made refractory coating on the surface, after drying and hardening become a whole shell, melt the shell model by steam or hot water. Then put the shells in the sand, filling dry sand in all round and modeling. Finally roasting it based on high-temperature in the furnace, the shell after roasting, and getting the casting part after pouring molten metal.

The investment casting process can produce High precision dimensional parts, generally can reach to CT4-6(sand casting is CT10-13, die casting is CT5-7). Due to the complexity of investment casting process, there are many factors influencing the casting dimension accuracy. Such as shrinkage of mold material, deformation of the casting, Shell heating and cooling line quantity change in the process, alloy shrinkage and deformation of castings in the solidification process. The surface finish of investment castings is higher than the ordinary casting, can reach to Ra1.6~3.2.

The greatest advantages of investment casting is casting parts have high dimensional accuracy and surface finish, so it can reduce the mechanical processing. The another advantage of investment casting method is that it can cast all kinds of alloy and complex casting part, special casting high temperature alloy casting part.

The precision of the Steel Casting Part: ±0.15mm~

Smoothness of surface of rough part: Ra6.4;

Shrinkage rate of steel investment casting products: 0.6%;

Material wastage rate: 5%;

General stainless steel casting part machining allowance: 0.7mm;

Surface preparation methods: Sand blasted, Shot blasting, Powder coating, Painting, Plating, Electrophoresis, Polishing.

Our company's production equipment and management system

CNC machining center: 8 sets AIGEMA A-8;

CNC lathe machine: 6 Guangzhou Machines and 7 Shenyang Machines;

Work days of one week: From Monday to Saturday;

Shift work: 2 shift per day;

Working hours: From AM 8:00 to PM 5:00;

2D and 3D drawing Software: AutoCAD, UG, Pro/E, SolidWorks 2013;

QC control: New type NANO CMM, FPI M5000 desktop metal analyzer, Easson projector, Mechanical properties tester.

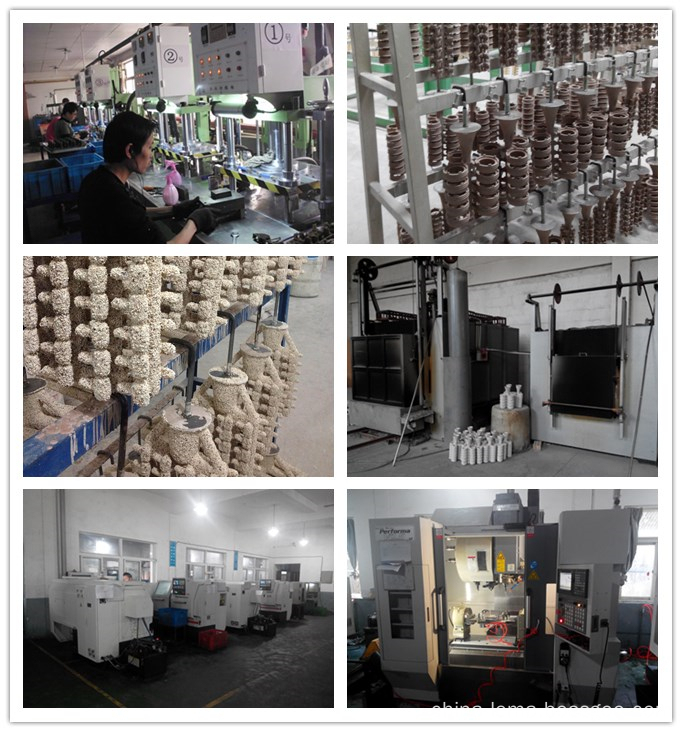

The steel casting process and machining equipment:

Steel Casting Part

Stainless Steel Lost Wax Casting, Steel Casting Part, Steel Investment Casting Part, Steel Silica Sol Casting Part
